EAS603-23
EAS603-C23 integrated a comprehensive set of features that enhance the product’s stability, reliability, and adaptability, ensuring it meets diverse customer requirements from performance to security and management efficiency.
- Dual 5GHz Radios: up to 16 devices in PtMP mode
- Automatic RF Correction
- Dying Gasp
- Superior QoS on RF Connections
- Power Redundancy: Supports dual PoE ports for redundant power
- Centralized NMS
- Intelligent Network Mapping: Built-in GPS supports auto-discovery
- IP67-rated enclosure
- AES-256 encryption
- N-type connectors for external antennas
- Integrated one 5GHz 23dBi internal antenna
EAS603-23
Main Chipset
Dual Core CPU, ARM A53, 1.0 GHz
Flash
32MB NOR, eMMC8GB
SDRAM
DDR3 1GB
WiFi Standards
IEEE 802.11ax on 5 GHz
Transmit Power (Combined)
5GHz: Up to 27dBm
Bluetooth
For Radio Management
GPS
On board GPS with integrated Antenna, 1PPS pulse, GPS Synchronization
Compass senor (magnetometer)
Antenna Alignment
Dying Gasp
40ms (Max)
Thermal Sensor
To monitor board temperature

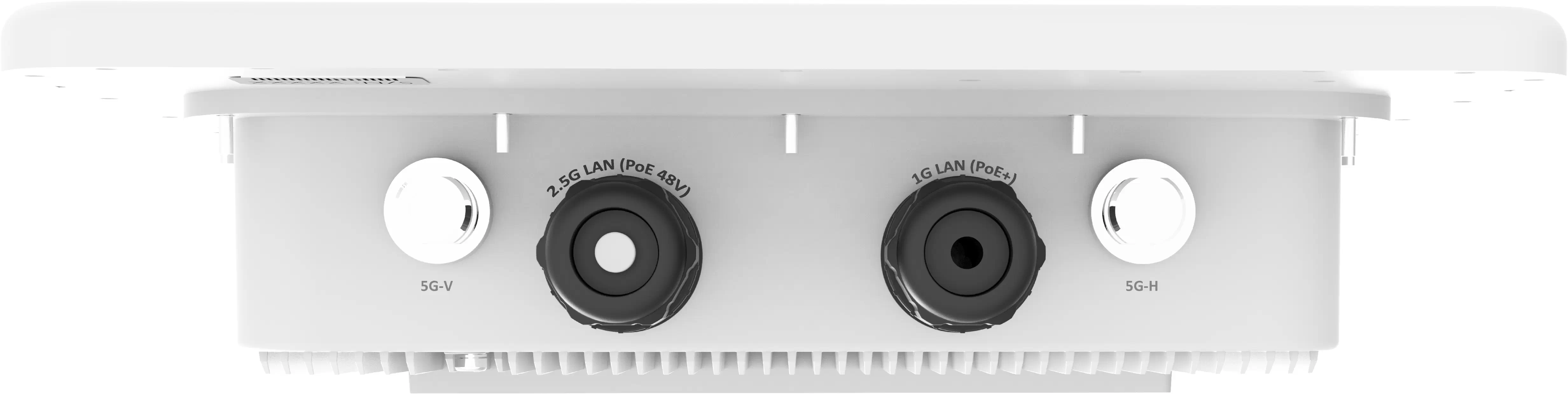

Interface
1x 10/100/1000Mbps LAN-1 Port (802.3bt PoE)
1x 10/100/1000/2500Mbps LAN-1 Port (Proprietary PoE)
Operating Temperature
-10°C ~ 60°C
Dimensions (W x L x H)
305 x 305 x 79.5mm
Weight (Without accessories)
4.69 kg
Certification (Generic)
FCC, CE, IC, UKCA
Safety Compliance
CB
Maximum Power Consumption
21w
Power Source
IEEE802.3at or Proprietary 48V/1A or Direct DC Input up-to 56V LAN2 Port
Operation Modes
AP/STA
Base Station ( BSU ), Subscriber ( SU )
Max Subscribers
16 per radio
Frequency Radio
5.1 GHz – 5.9 GHz (Broadband Connectivity)
2.4 GHz / Bluetooth (Radio Management)
Support radios and channels will be varied on the configured regulatory domain.
Supported Radio Technology
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
Channel Bandwidth
20 / 40 / 80 / 160 MHz
Channel Spacing
5 MHz
Dynamic Data Rate Selection (DDRS)
Automatically detect optimal data rate for given link
Dynamic Channel Selection (DCS)
Selects optimal channel to operate to maintain SLAs (CIR & MIR)
Auto Transmit Power Control ( ATPC)
Automatically adapt the transmit power
Interference Mitigation
Auto Channel Selection(ACS), Dynamic Channel Selection(DCS), Background Scan(BG Scan) features aid to adapt to varying RF medium
Encryption
AES 256
Spectrum Analyzer
Provides RF medium statistics
Radio Chains
Dual 2x 2:2
Supported Modulation Type
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Integrated Antenna
2x 2.4GHz: 3.5dBi (Integrated Omni-Directional)
2x 5GHz (Radio1): 23dBi Intergrated Panel Antenna
2x 5GHz (Radio2): N-Type Connector

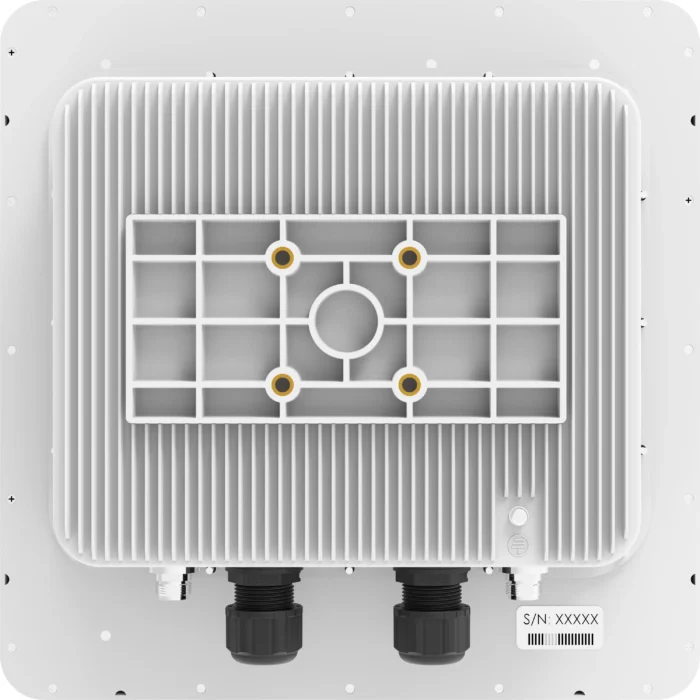

Mounting Type
Pole mount
MTBF
100K hours
