EEP-100A-X74
The EEP-100A-X74 is an Intel® Atom® x7000RE–based industrial-grade PC designed for compact, reliable edge computing. Featuring a small form factor and rich industrial I/O—including HDMI/DP combo display output, USB 3.2 and USB 2.0, serial ports, and digital I/O—it is well suited for embedded control, industrial automation, robotics, and edge AI gateway applications that demand scalable performance, long-term reliability, and space-efficient deployment.
- Intel® Amston Lake x7433RE 4 cores 1.5GHz 9W TDP
- 8GB LPDDR5 4800MHz, up to 16GB
- 64GB eMMC
- TPM2.0
- 1 x HDMI/DP combo port
- Fan-less
- WiFi6/Bluetooth
- DIN Rail mount support
- Compact dimension: 120 x 70 x 50mm
- Total power consumption 15W
- Optional extension box supports PoE, AI & LTE
EEP-100A-X74
CPU
Intel® Amston Lake x7433RE 4 cores 1.5GHz 9W TDP
Models
EEP-100A-X74: Intel x7433RE CPU, main unit only;
EEP-100A-X74-F: Intel x7433RE CPU and main + extension units integrated
Storage
256GB eMMC
Power Button
Press once: On/off
Reset Button (hole)
Press once: system reset
RTC
1 x CR2032 battery
DIDO
4 x DI (Digital In), 4x DO (Digital Output), 3.3V
Expansion on PCBA (internal)
1 x M.2 E key 2230 socket for WiFi
WiFi/BT
802.11a/b/g/n/ac/ax Wireless LAN 2T2R and BT 5.2
DIDO
4 x DI (Digital In), 4x DO (Digital Output), 3.3V
Power in
Input DC range support from 12V to 24V

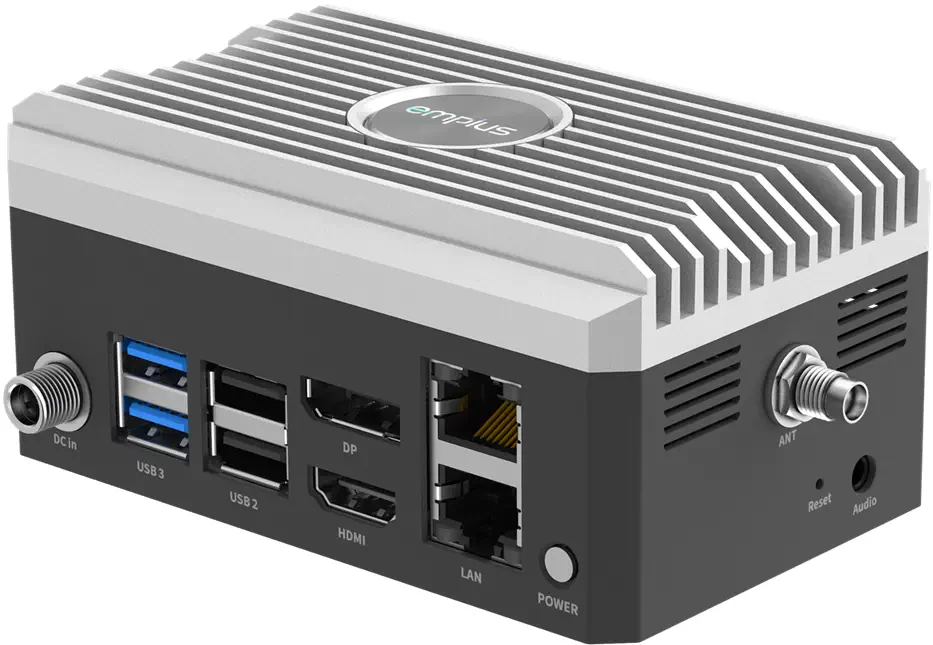

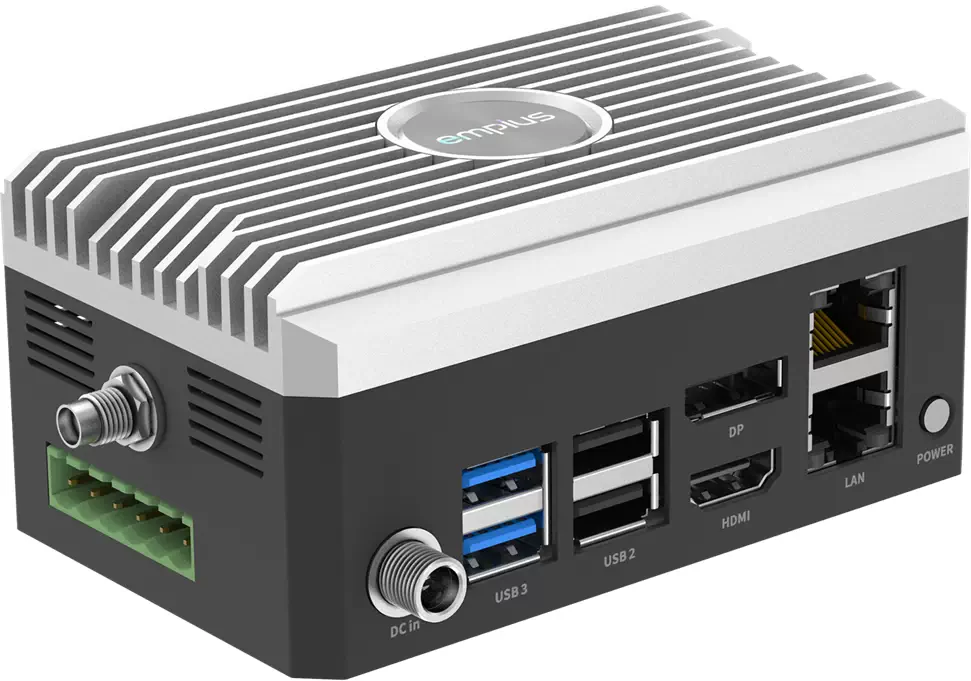

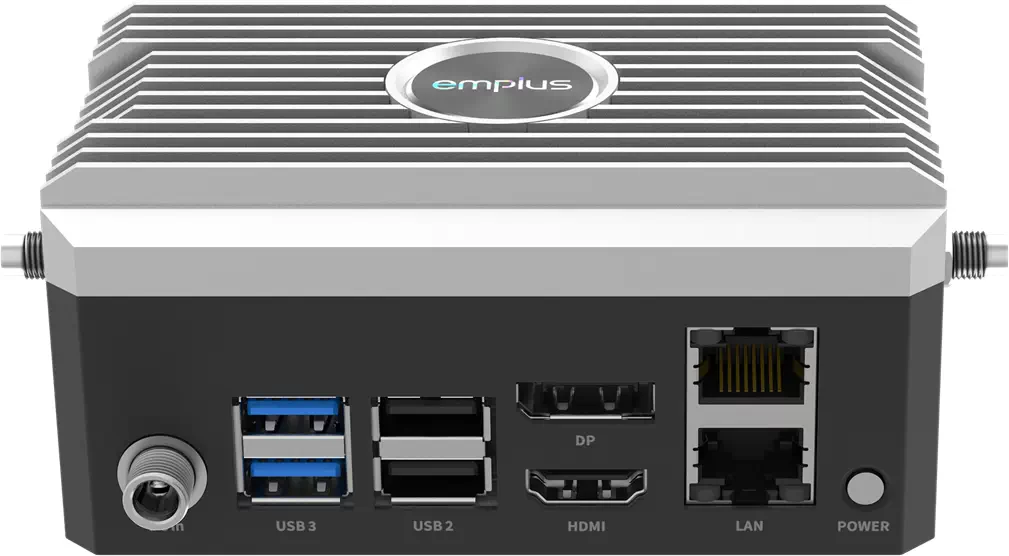

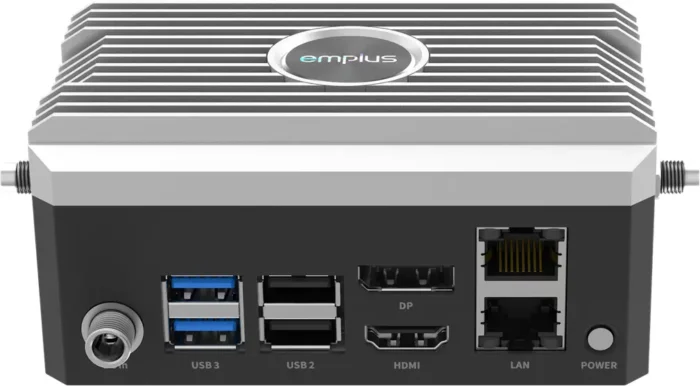

I/O Interface
1x HDMI2.0 & DP1.4 combo output port
2x USB 3.2 Type A & 2x USB 2.0 Type A
1x RJ45, 2.5GbE ethernet (10/100M/1000M/2500M)

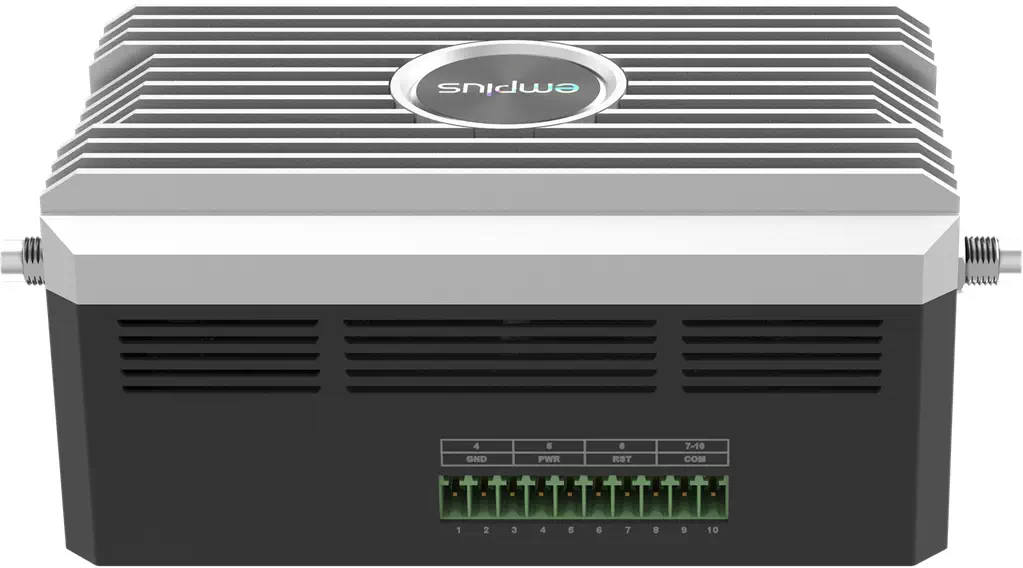

1 x 16-pins terminal block for 4xDI&4xDO / UART(TX/RX) /Reset/RS232/RS485/RS422
1 x DC jack, lockable
1 x power button
1 x reset button (hole)
2 x LED (power, software-defined)
1 x 3.5mm Audio Jack
2x RP-SMA for Wi-Fi
Fan
Fan-less
Mounting
DIN-Rail mount
Accessory
19V/1.0A 19W (optional)
Dimension
120 x 70 x 50 mm
Weight
TBD
Temperature
Operating: -20°C~+50°C
Storage : -40°C ~ +85°C
Storage Humidity
5%~95% @ 40°C (non-condensing)
