EEP-200N-A32
The EEP-200N-A32 Series is a high-performance industrial Edge AI Box powered by NVIDIA Jetson AGX Orin, designed for compute-intensive AI workloads at the edge.
Purpose built for high AI performance, rich industrial I/O, wide-range DC input, and flexible expansion, the EEP-200N is ideal for AMR (Autonomous Mobile Robots) & DMS (Driver Monitoring System) types of applications
- Nvidia® Jetson AGX Orin 32GB module integrated
- Up to 200TOPS
- 256GB NVMe SSD
- Rich I/O ports for AMR/AGV application
- Optional GMSL 4-ch camera support
- Wide input DC range support from 9V to 48V with lockable connector
- Optional WiFi6/Bluetooth & LTE/5G support
- VESA, DIN Rail and Wall mount support
- Dimension: 207 x 155 x 70mm
- Total power consumption 75W
EEP-200N-A32
Compatible SOM
NVIDIA AGX Orin modules
Models
EEP-200N-A32: AGX Orin 32GB module integrated, up to 200TOPS 60W
EEP-200N-A64: AGX Orin 64GB module integrated, up to 275TOPS 60W with 64GB SOM
Storage
M.2 2280 Gen3/4 reserved for NVME SSD, default 256GB
Power in
Input DC range support from 9V to 48V, 90W
Power Button
Press once: On/off; Force to power off: long press for 10 seconds
Reset Button (hole)
Press once: system reset
Recovery Button (hole)
Long press before boot up: system will enter recovery mode
Long press during operating: system will reset to factory default
RTC
1 x CR2032 battery
DIDO
4 x DI (Digital In), 4x DO (Digital Output), 3.3V
Expansion on PCBA (internal)
1 x M.2 M key 2280 for NVME SSD for system image
1 x M.2 B-M key 3052 for LTE/5G support (optional)
1 x M.2 E key 2230 socket for WiFi
1 x USB Type A for external FAN DC out
WiFi/BT
802.11a/b/g/n/ac/ax Wireless LAN 2T2R and BT 5.2
DIDO
4 x DI (Digital In), 4x DO (Digital Output), 3.3V
I/O Interface
1x HDMI 2.0 output (Lockable)
4x USB 3.2 Type A & 4x USB 2.0 Type A
4x RJ45, Gigabit ethernet (10/100M/1000M)
2x RJ45 for RS422/ RS485/ RS232 combo port
1x RJ45 for CAN port
1 x RJ45 for remote control, support power/recovery/reset
1 x DB37 GPIO for GPIOx9 / I2Cx1 / SPIx1 / UARTx2(TX/RX) / Relay
1 x DC jack, lockable
1 x power button
1 x reset button (hole)
1 x recovery button (hole)
2 x LED (power, software-defined)
1 x 3.5mm Audio Jack
2x RP-SMA for Wi-Fi
4 x SMA for 5G/LTE
1 x USB Type A on top of chassis for external FAN (12V/1A)
1 x nano/4FF SIM slot
Optional 4-ch Fakra mini connectors for GMSL cameras
Fan
Optional Fan on top of the top cover
Mounting
VESA wall, DIN-Rail & wall mounting
Accessory
19V/4.5A 90W (optional)
Dimension
207 x 155 x 70 mm
Weight
TBD
Temperature
Operating: -20°C~+50°C
Storage : -40°C ~ +85°C
Storage Humidity
5%~95% @ 40°C (non-condensing)

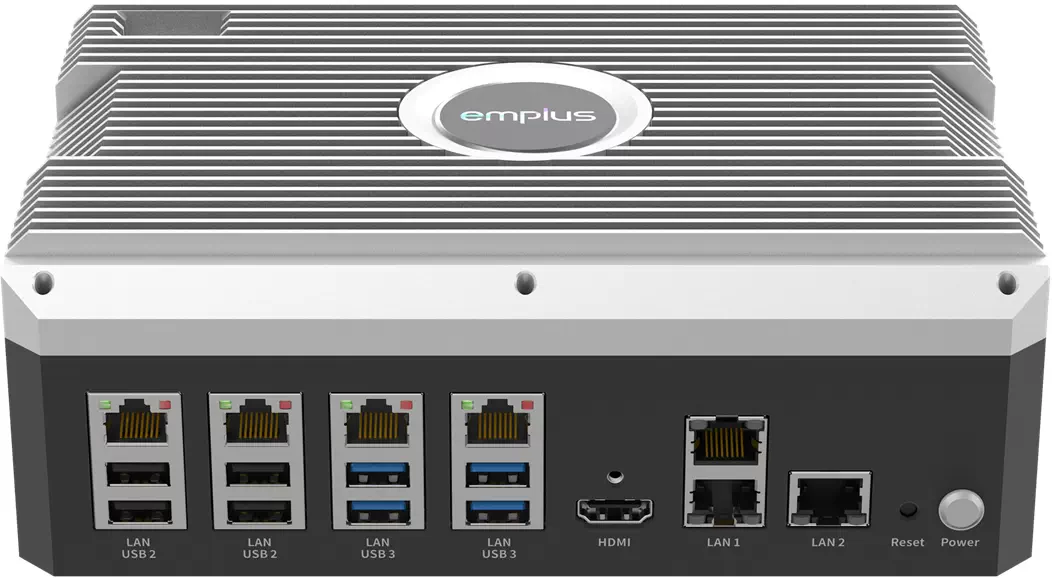

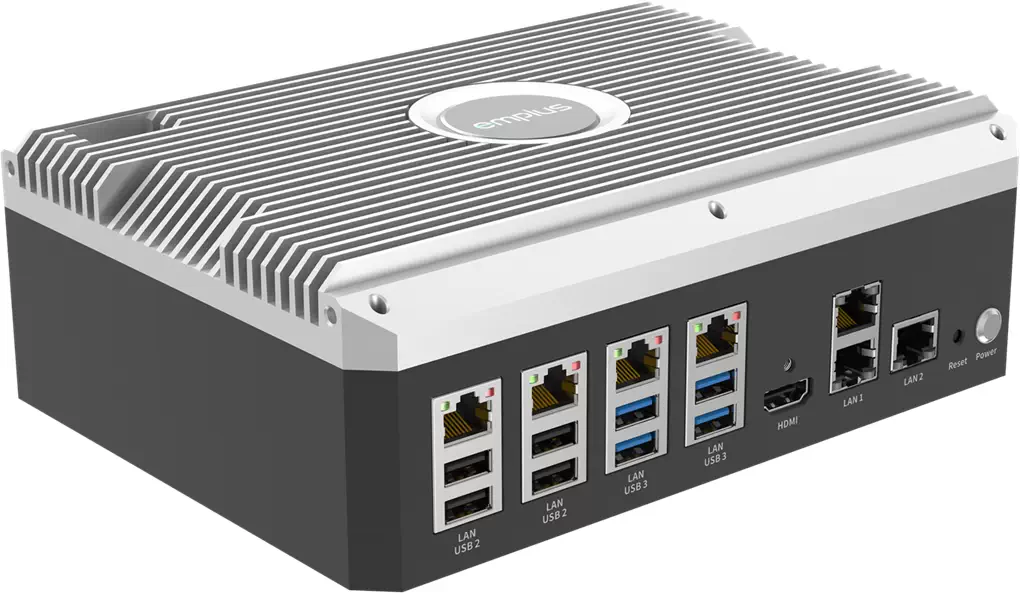

Rich Interfaces
The EEP-200N Series is a high-performance industrial Edge AI Box powered by NVIDIA Jetson AGX Orin, designed for compute-intensive AI workloads at the edge.
With support for high AI TOPS, rich industrial I/O, wide-range DC input, and flexible expansion, the EEP-200N is ideal for applications such as intelligent video analytics, autonomous systems, smart manufacturing, and AI-driven inspection

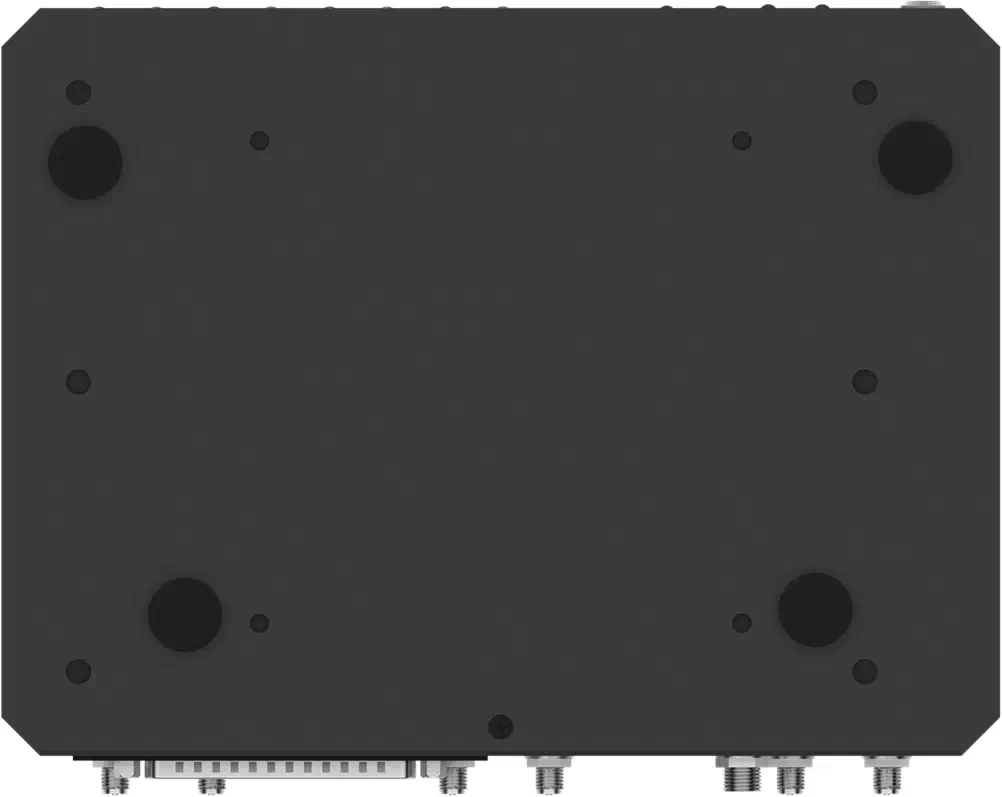

Mounting Kits
The EEP-200N series supports a full range of industrial mounting options — including VESA, wall-mount, and DIN-rail installation — providing maximum flexibility for deployment across diverse environments. Whether integrated inside control cabinets, attached to machinery frames, mounted behind displays or kiosks, or installed within mobile and space-constrained edge enclosures, the system adapts easily to the physical requirements of factory floors, smart buildings, transportation systems, and public-safety infrastructure. This versatility ensures stable operation, simplified installation, and seamless integration into both new deployments and retrofit projects.
