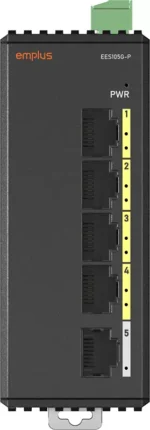

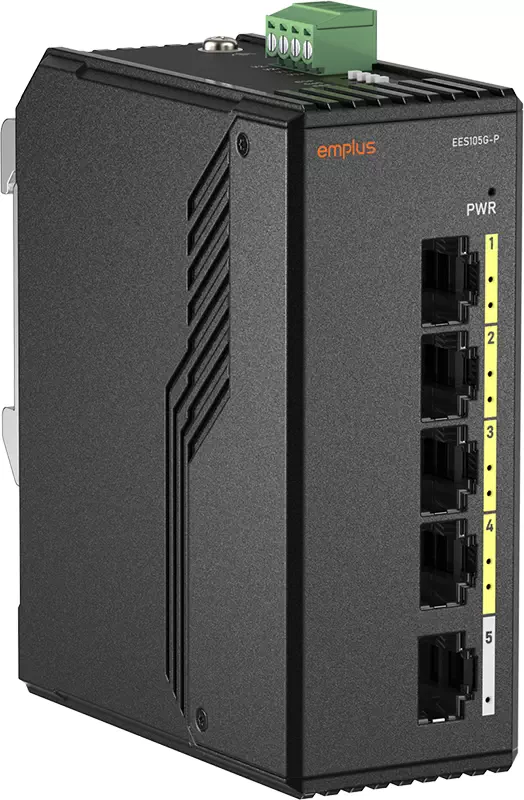

EES105G-P

An Industrial Unmanaged Switch designed for reliable plug-and-play connectivity in harsh environments. It delivers stable data transmission, robust durability, and uninterrupted operation, with full PoE support to power cameras, sensors, and field devices. With wide temperature tolerance and rugged construction, it ensures continuous network connectivity across factory floors, outdoor sites, and mission-critical systems, providing a simple, dependable solution for industrial networking.

  • Port configuration: 4×1 Gigabit 802.3at + 1×1 Gigabit
  • Dual power input 48-57VDC
  • Operating temperature: -40 to 75°C
  • IP40 Metal Enclosure
Add to compare
Description

EES105G-P

Technical Specification

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3z 1000Base-X Ethernet
802.3x Full-Duplex Flow Control
802.3at PoE

Memory
2MB NOR Flash

Redundant power input
Non-PoE model: 9.6 – 60VDC
PoE model: 48 – 57VDC

Physical Interface
System Indicators
Power LED
Port Indicators
Link/Activity/Speed (per Ethernet port)
PoE Status (PoE model)

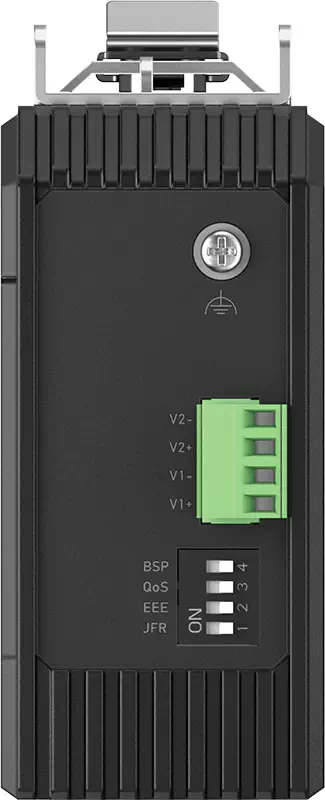

Configurable Software Feature via DIP Switch
BSP: Broadcast Storm Protection
QoS: Quality of Service
EEE: Energy-Efficient Ethernet
JFR: Jumbo Frame

Environmental & Physical
Temperature Range：Operating: -40°C to 75°C
Humidity (Non-Condensing)：Operating: 5% – 95%
