EES108G
An Industrial Unmanaged Switch delivers robust networking performance in harsh environments without requiring configuration. Built for plug-and-play simplicity, it features advanced capabilities typically found in managed switches like QoS. Ideal for industrial automation, manufacturing, and transportation applications, this switch combines maintenance-free operation, ensuring reliable connectivity in demanding conditions while minimizing deployment complexity and operational costs.
- Port configuration: 8×1 Gigabit
- Dual power input 9.6-60VDC
- Operating temperature: -40 to 75°C
- IP40 Metal Enclosure
EES108G
Technical Specification
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3z 1000Base-X Ethernet
802.3x Full-Duplex Flow Control
802.3at PoE
Memory
2MB NOR Flash
Redundant power input
Non-PoE model: 9.6 – 60VDC
PoE model: 48 – 57VDC
Physical Interface
System Indicators
Power LED
Port Indicators
Link/Activity/Speed (per Ethernet port)
PoE Status (PoE model)

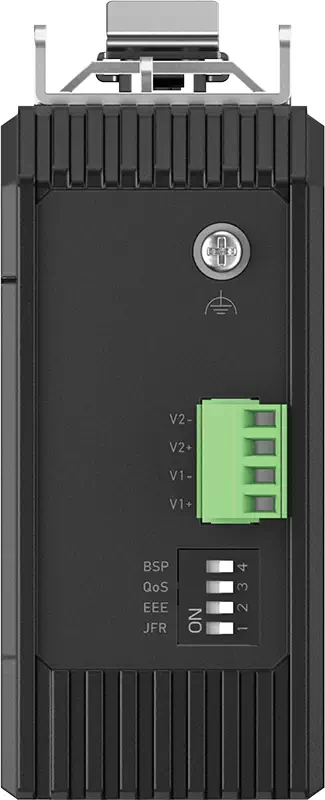

Configurable Software Feature via DIP Switch
BSP: Broadcast Storm Protection
QoS: Quality of Service
EEE: Energy-Efficient Ethernet
JFR: Jumbo Frame
Environmental & Physical
Temperature Range：Operating: -40°C to 75°C
Humidity (Non-Condensing)：Operating: 5% – 95%
