EES810QX
A Time-Sensitive Networking (TSN) Industrial Ethernet Switch that delivers the precision and reliability required for advanced industrial operations. With 2.5GbE access ports and dual 10GbE SFP+ uplinks, it provides high-bandwidth, long-distance backbone connectivity resilient to electromagnetic interference. Engineered for harsh industrial environments, it ensures stable, real-time communication and robust performance across mission-critical applications.
- Support TSN to guarantees ultra-low latency and deterministic data delivery.
- Port configuration: 8×2.5Gigabit + 2x10Gigabit SFP+
- Proprietary Emplus Fast-Ring < 30ms

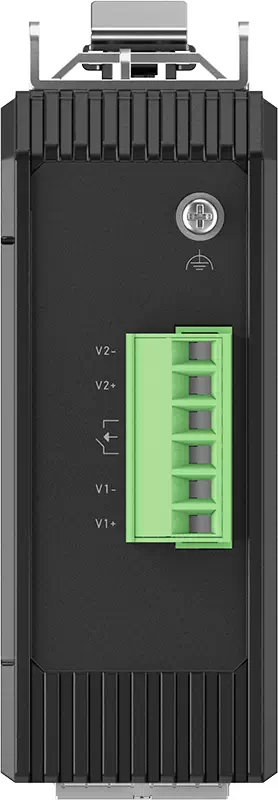

- Dual power input 9.6-60VDC
- Operating temperature: -40 to 75°C
- Support RESTful API for Easy integration
- IP40 Metal Enclosure
EES810QX
Technical Specification
Port Standards
802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3x Full-Duplex Flow Control
Network Port
8×10/100/1000 Mbps Ports
Switching Capacity
16Gbps
SDRAM
1GB
Flash Memory
2MB NOR
4GB eMMC
Power Source
9.6-60VDC
Physical Interface
System Indicators
Power LED x2; P1, P2
Status LED
Owner LED (RPL Owner)
Ring LED
Port Indicators
Link/Activity/Speed (per Ethernet port)Fault LED
L2 Features
Network Management
Local Web GUI
MAC Address Table
8K
Jumbo frame size
10K
Multicast Group
Max 256 groups
MLD Snooping
MLD Snooping: v1/v2
QoS-number of Priority Queues Supported
Queue 8
QoS Trust Mode
Cos/802.1p DSCP
CoS/802.1p-DSCP
Scheduling Mechanism
Strict / WRR/ Strict + WRR
Bandwidth Control
Port-based bandwidth control (Ingress/Egress)
Port Security
Max. 256 Entries
Access Control List (ACL)
MAC Based ACL IPv4/IPv6 Based ACL ACL Binding
Web Graphical User Interface (GUI)
HTTP IPv4 HTTPS IPv4
L2 Features
SNMP RMON
SNMP v1/v2c/v3 Support
RMON 1,2,3,9
RMON 1,2,3,9
System Time
Time Setting/Daylight saving
Common L2 Features
Loopback Detection
Multicast Filtering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
TSN Features
IEEE-802.1Qbv (TAS) Time-aware Scheduler
IEEE-802.1Qbu & 802.3br Frame Preemption
IEEE-802.1Qci ingress gating/policing/checking
IEEE802.1AS-2011/IEEE802.1AS rev
Redundancy Features
G.8031 – 1:1 Port protection
G.8032 – Ring protection v1/v2
MRP
RSTP
STP
Environmental & Physical
Temperature Range
Operating: -40°C to 75°C
Humidity (Non-Condensing)
Operating: 5% – 95%
