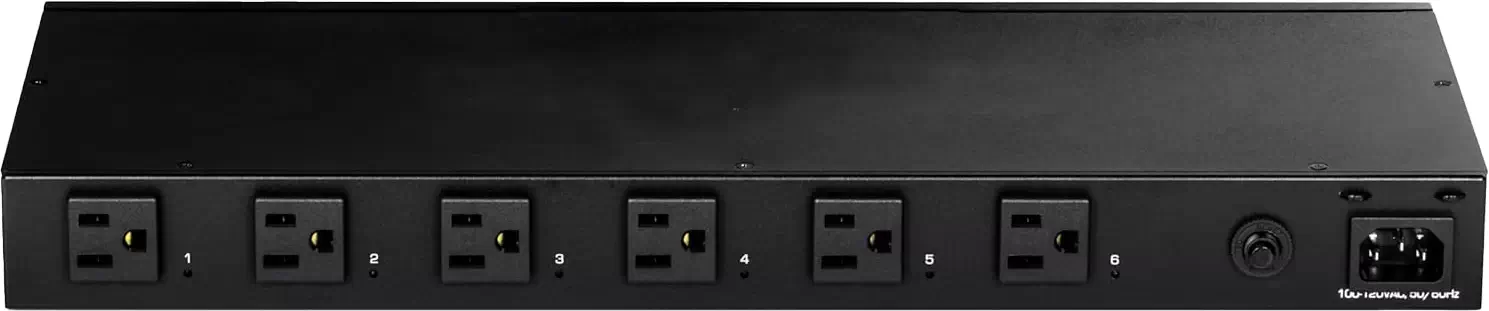

EPD-1506R-US
Smart PDU with 6 managed NEMA 5-15R and 1 NEMA 5-15R bypass outlets, real-time monitoring, surge protection, and automated recovery for reliable performance. Designed with gigabit port, RESTful API support, and a 1U rack-mountable form for flexible IT deployment.
- Input Voltage 100-120VAC, 50-60Hz

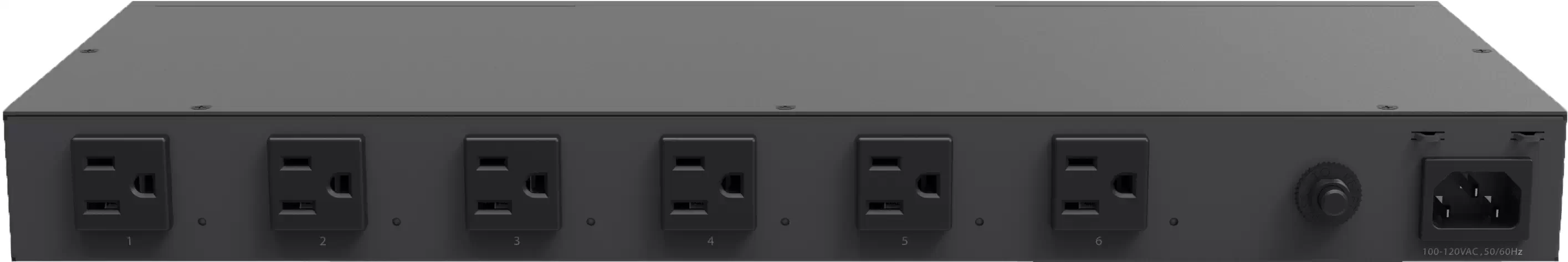

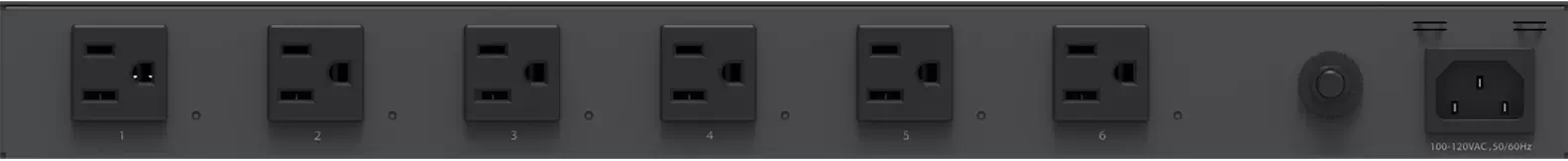

- 6 individually managed NEMA 5-15R Outlets

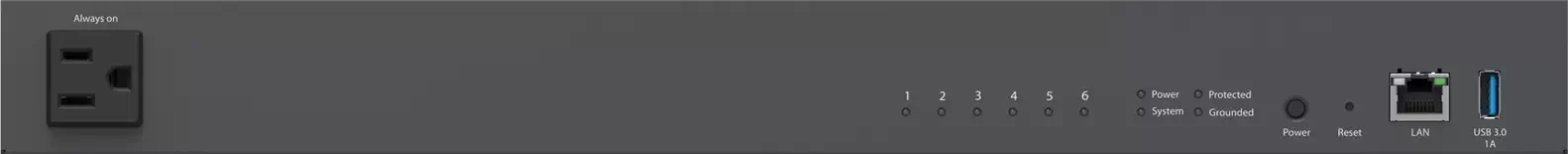

- 1 NEMA 5-15R bypass power outlet
- Robust surge/ESD protection
- Real-Time power consumption information, alerts, and controls remotely
- Automated outlet reboot settings to recover from connection loss
- 1 Gigabit port
- 15A circuit breaker for overload protection
- Automate outlet reboot settings in case of connection loss
- RESTFUL API supported
- 1U 19” Rack mountable
EPD-1506R-US
Output Voltage
100~120V
Output Fequency Compatibility
50-60 Hz
Output Receptacles
(6) NEMA5-15R
(1) NEMA5-15R –Bypass
Output Overload Protection
15A Breaker
Input Voltage
100~120V
Maximum Input Current
15A
Input Frequency
50-60 Hz
Input Outlet
(1) IEC C-14
Interfaces
(1) 10/100/1000Mbps RJ45 8P8C shielded RJ45 with LED (G/G); left = speed, right = link/act
(1) Recessed Button
Surge Protection
Line-Ground, Line-Neutral, Neutral-Ground
Shuts off outlets if surge protection is compromised
Joule Rating
2160J@8/20 μs
Safe Voltage
Yes (88~138V Adjustable)
Metering IC
Prolific PL7413
CPU
MTK MT7621A
Flash Size
32MB SPI
Memory Size
256MB DDR3
Dimensions (HxWxD)
44x440x170mm
Weight
2389g
Operating Temperature
0°C to 40°C
Storage Temperature
-30°C to 70°C
Humidity
5%-95% non-condensing
Safety Regulation
Power Distribution Unit
UL 62368-1 + CSA C22.2 no. 62368-1
EMC Emissions (USA, Canada)
FCC Part 15 Subpart B / ICES-003 Issue 7 (Class B)
ESD Protection
IEC 61000-4-2 Level 2 Contact, Level 3 Air-Gap
Surge Protection
IEC 61000-4-5 Class 3
