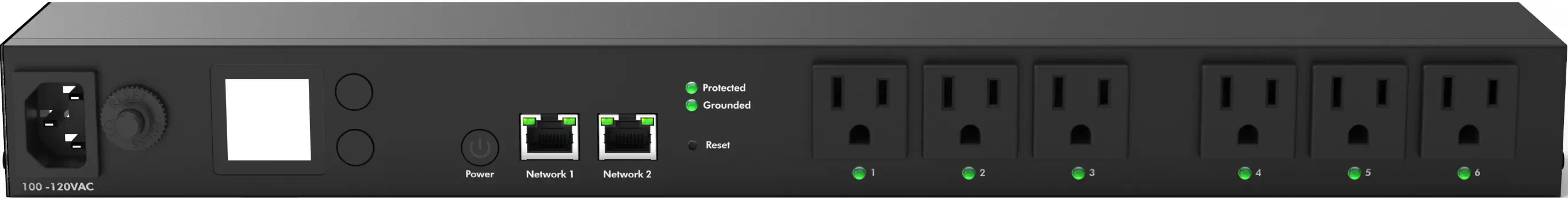

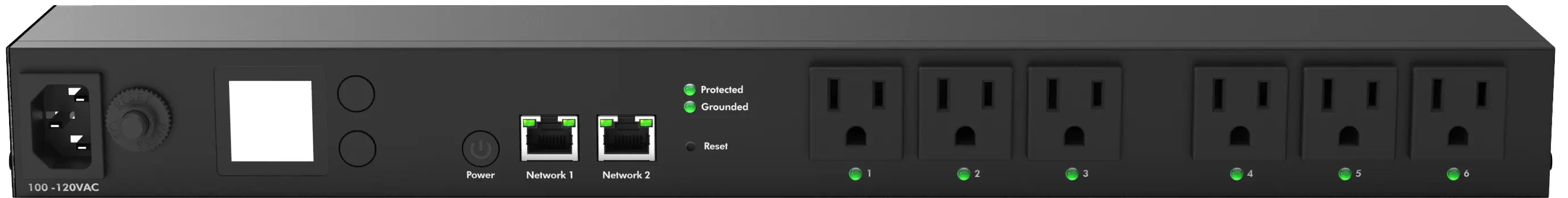

EPD-1506VR-US
Smart PDU with 6 managed NEMA 5-15R outlets, real-time monitoring, surge protection, and automated recovery for reliable performance. Designed with gigabit port, RESTful API support, and a 1U rack-mountable form for flexible IT deployment.
- Input Voltage 100-120VAC, 50-60Hz
- 6 individually managed NEMA 5-15R Outlets
- Robust surge/ESD protection
- Real-Time power consumption information, alerts, and controls remotely
- 1.3-inch LCD display for providing quick access to live data and local controls
- Dual Gigabit Ethernet ports
- 15A circuit breaker for overload protection
- Automate outlet reboot settings in case of connection loss
- RESTFUL API supported
- Flexible mounting capabilities for 1U, 0U, wall or under-desk mounting
EPD-1506VR-US
Output Voltage
100~120V
Output Fequency Compatibility
50-60 Hz
Output Receptacles
(6) NEMA5-15R
Output Overload Protection
15A Breaker
Input Voltage
100~120V
Maximum Input Current
15A
Input Frequency
50-60 Hz
Input Outlet
(1) IEC C-14
Interfaces
(2) 10/100/1000Mbps RJ45 8P8C shielded RJ45 with LED (G/G); left = speed, right = link/act
(1) Recessed Button
Surge Protection
Line-Ground, Line-Neutral, Neutral-Ground
Shuts off outlets if surge protection is compromised
Joule Rating
10800J@8/20 μs
Safe Voltage
Yes (88~138V Adjustable)
Metering IC
Prolific PL7413
CPU
Airoha EN7562
Flash Size
128MB SPI
Memory Size
256MB DDR3
Dimensions (HxWxD)
44x440x70mm
Weight
1035g
Operating Temperature
0°C to 40°C
Storage Temperature
-30°C to 70°C
Humidity
5%-95% non-condensing
Safety Regulation
Power Distribution Unit
UL 62368-1 + CSA C22.2 no. 62368-1 UL1449 ed5
EMC Emissions (USA, Canada)
FCC Part 15 Subpart A / ICES-003 Issue 7 (Class A)
ESD Protection
IEC 61000-4-2 Level 2 Contact, Level 3 Air-Gap
Surge Protection
IEC 61000-4-5 Class 3
