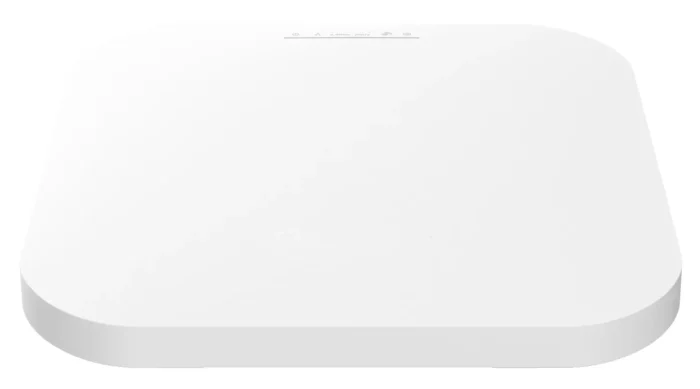

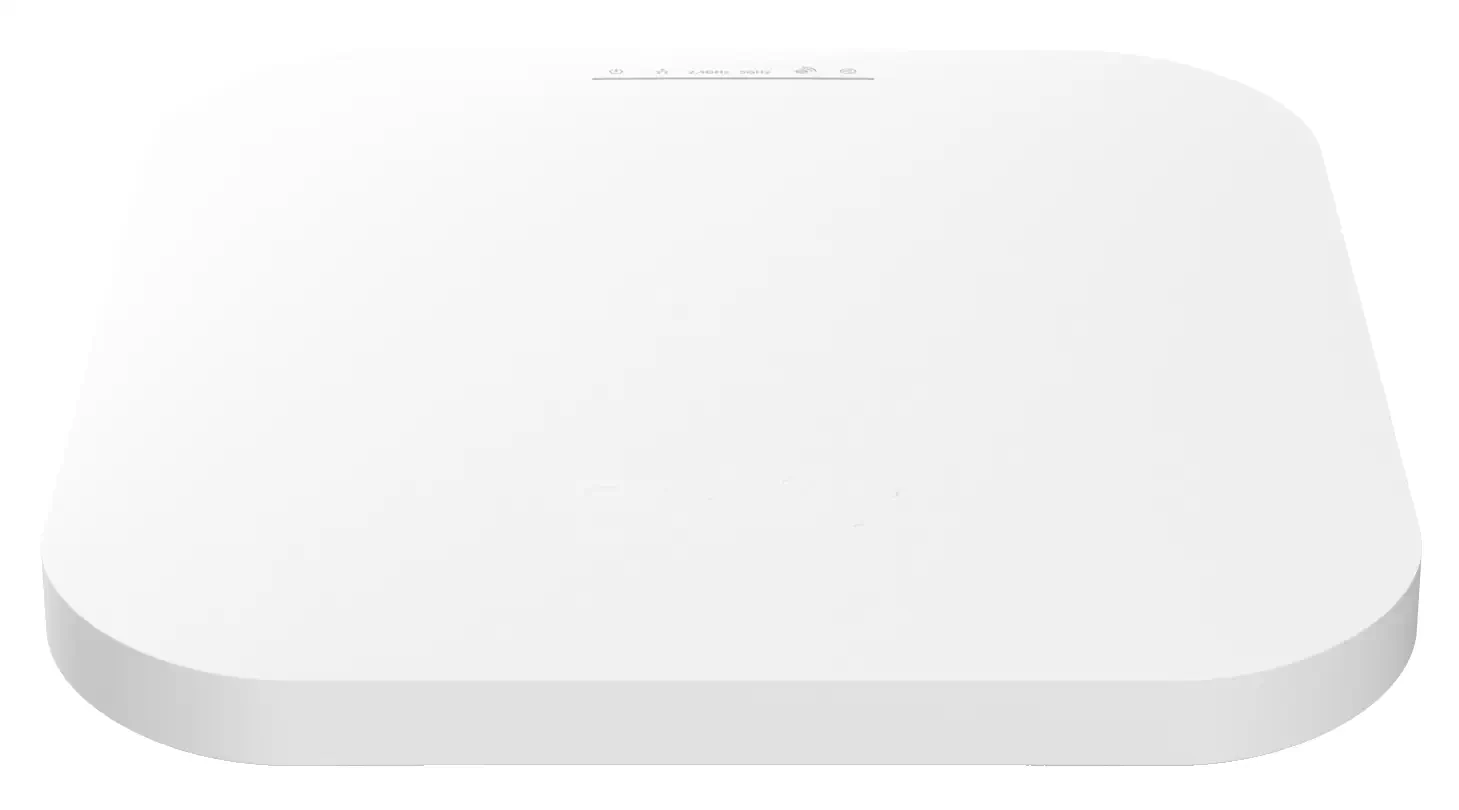

WAP380

Enterprise Access Points (APs) are high-performance, robust, and scalable devices designed to deliver reliable wireless connectivity in large-scale environments, such as offices, corporate campuses, warehouses, factories, and other enterprise-level settings. Unlike consumer-grade routers, enterprise APs are built to handle the high demands of hundreds or even thousands of connected devices, offering advanced features like network security, and support for high-density environments.

  • Port configuration: 1×2.5 Gigabit Ethernet w/802.3at PoE PD + 1×1 Gigabit Ethernet
  • Dual power input: 12VDC/PoE IN
  • Operating temperature: 0 to 40°C
  • Support RESTful API for Easy integration
Description

WAP380

MCU
Qualcomm A53 Quad-core @2.2GHz

RF Radio/Tx Power (Conductive Per Chain MCS0)
2.4GHz @17dBm
5GHz @17dBm

BT/BLE
BLE5.1 (option)

Scanning Radio
(option)
2.4GHz/5GHz Selectable

Flash
32MB NOR (option)
256MB NAND

Memory
2GB DDR4 (2x 1GB)

Ethernet Switch/PHY
QCA8081 2.5GbE PHY
QCA8072 1GbE PHY

HW Watchdog
(option)

Power Source
PoE/DC IN

DC IN
12v 2.5A

PoE PD/PSE
PD, 802.3at/af or Passive

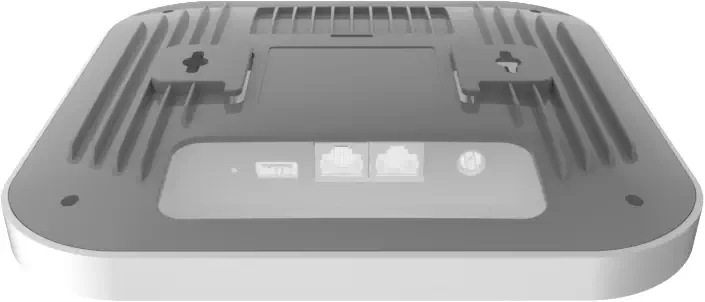

I/O
1x 2.5GbE RJ45
1x 1GbE RJ45
1x USB 2.0 Port (option)
1x Reset Button
1x DC IN

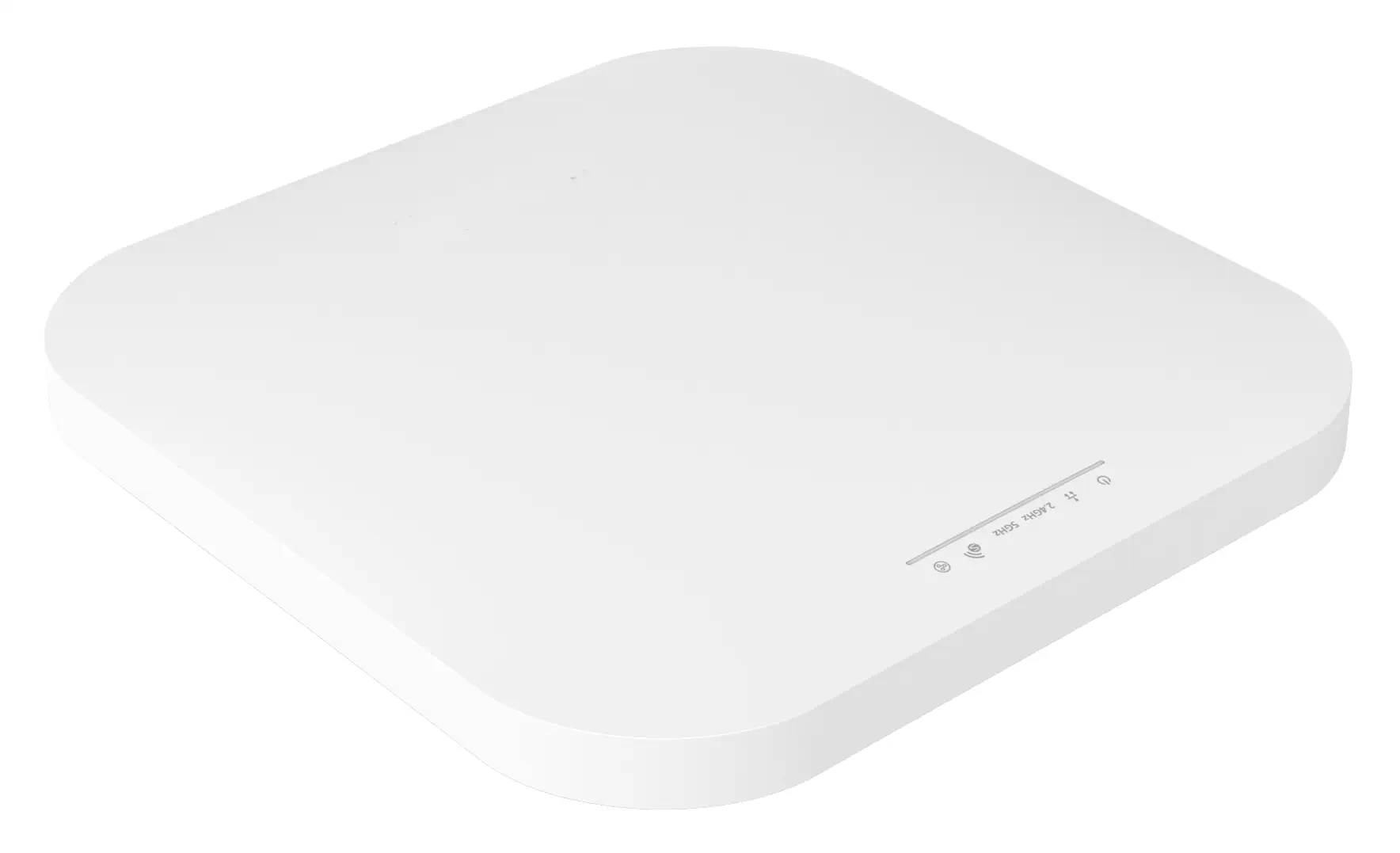

LED Indicator
4x Single-color LED

Antenna Design
Internal PIFA Antenna

Operation Temperature
0°C ~ 40°C

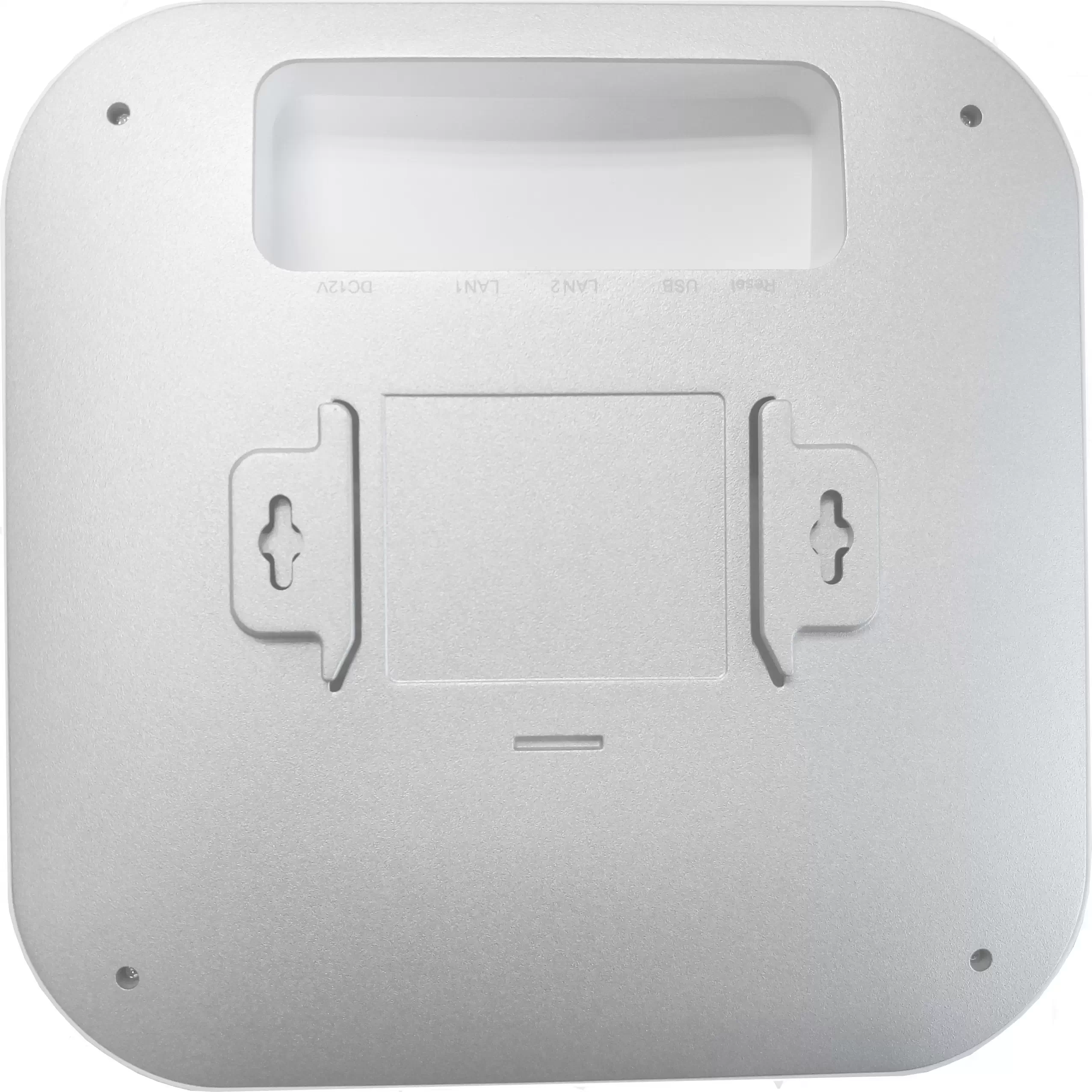

Mounting Type
Wall/Ceiling

Certification Compliant
FCC non-DFS
CE non-DFS

Dimension
205 x 205 x 34mm
