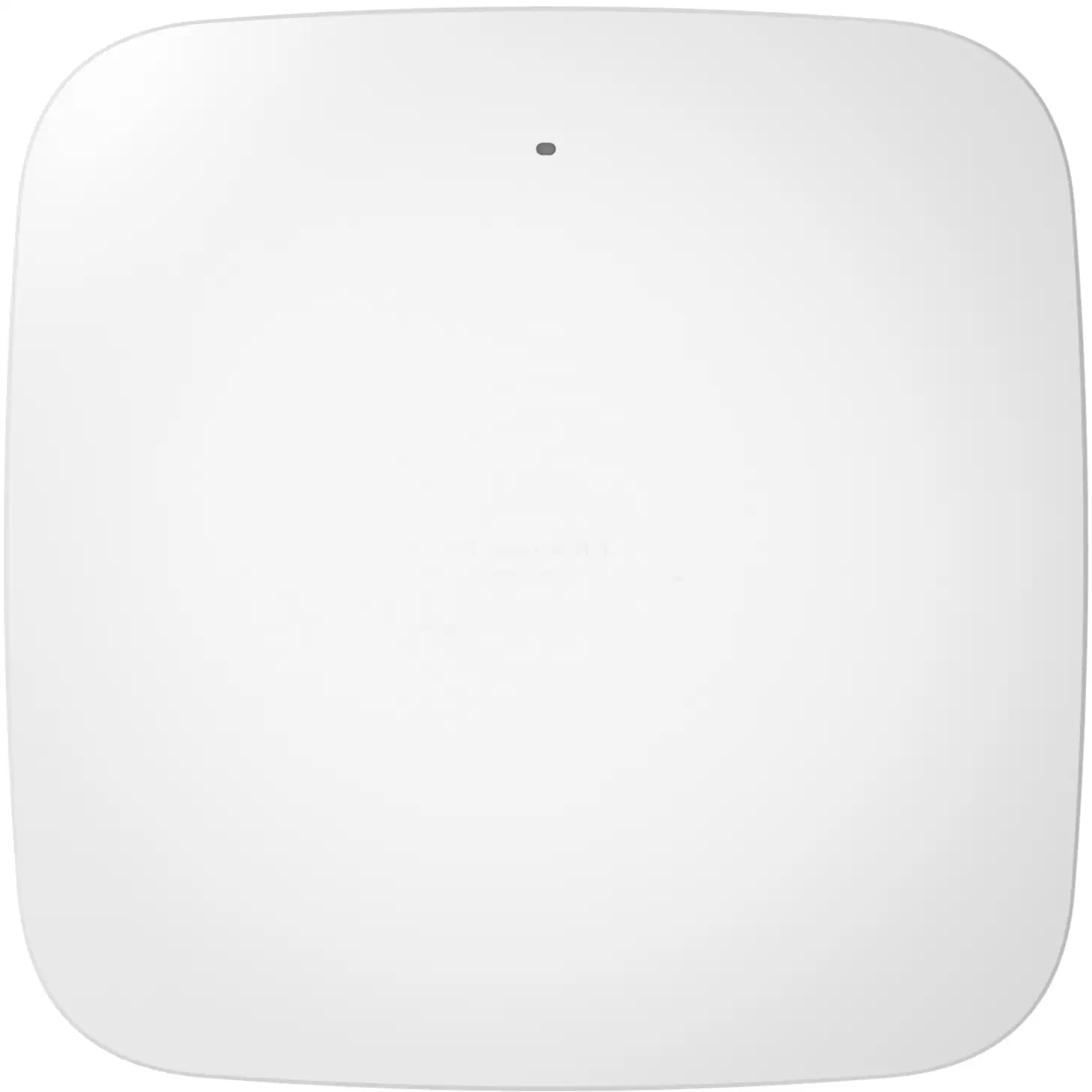

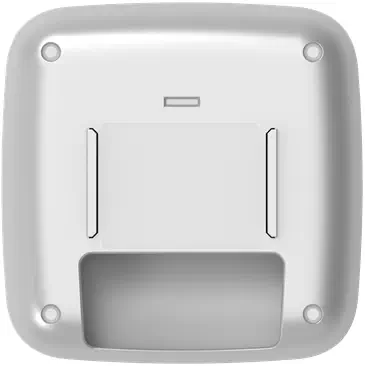

WAP385
Enterprise Access Points (APs) are high-performance, robust, and scalable devices designed to deliver reliable wireless connectivity in large-scale environments, such as offices, corporate campuses, warehouses, factories, and other enterprise-level settings. Unlike consumer-grade routers, enterprise APs are built to handle the high demands of hundreds or even thousands of connected devices, offering advanced features like network security, and support for high-density environments.
- Port configuration: 1×2.5 Gigabit Ethernet w/802.3at PoE PD + 1×1 Gigabit Ethernet
- Dual power input: 12VDC/PoE IN
- Operating temperature: 0 to 40°C
- Support RESTful API for Easy integration
WAP385
MCU
Qualcomm A53 Dual-core @1.0GHz
RF Radio/Tx Power (Conductive Per Chain MCS0)
2.4GHz @18dBm
5GHz @18dBm
BT/BLE
BLE v5.2
Flash
8MB NOR (option)
128MB NAND
Memory
512MB DDR3 16bit
HW Watchdog
(option)
Power Source
PoE/DC IN
DC IN
12v 2A
DC IN
12v 2A
PoE PD/PSE
PD, 802.3at/af or Passive
I/O
1x 2.5GbE RJ45
1x 1GbE RJ45
1x Reset Button
1x DC IN
LED Indicator
1x Tri-color LED
Antenna Design
Internal PIFA Antenna
Operation Temperature
0°C ~ 40°C
Mounting Type
Wall/Ceiling
Certification Compliant
FCC non-DFS
CE non-DFS
Dimension
160 x 160 x 30mm
