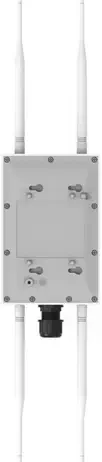

WAP682EXT

The Wi-Fi 6 Outdoor Access Point delivers fast, reliable wireless connectivity with extended coverage designed for large outdoor environments. Built with a rugged, weatherproof enclosure, it withstands harsh conditions including rain, dust, heat, and humidity. Its durable industrial-grade design ensures long-term performance, while advanced Wi-Fi 6 technology provides greater capacity, higher throughput, and improved efficiency for dense client deployments. With high-gain antennas and optimized RF performance, this outdoor AP delivers wide-area wireless coverage, making it ideal for campuses, parks, warehouses, and other expansive outdoor spaces.

  • 4 x Deatachable high gain external antennas
  • Port configuration: 1×2.5 Gigabit Ethernet w/802.3at PoE PD
  • Power input: PoE IN
  • Operating temperature: -20 to 60°C
  • Wall/Pole Mountable
  • IP67 Supported
  • Support RESTful API for Easy integration
Description

WAP682EXT

MCU
Quad-core A53 @ 1.8GHz

RF Radio
2.4GHz : Wi-Fi 6 802.11ax, 2×2
5GHz : Wi-Fi 6 802.11ax,2×2

BT/BLE
V5.1

Scanning Radio
2.4/5GHz Radio, full band, Tx/Rx

Flash
128MB NAND

Memory
1GB DDR4 (2x 512MB)

Ethernet Switch/PHY
2.5GbE PHY

Power Source
PoE

PoE PD/PSE
PD, 802.3 at/af

I/O
1x 2.5GbE RJ45

LED Indicator
5x Single Color LED

Antenna Design
4x External Antenna for Wi-Fi
2x Internal PIFA for BT/Scan

Operation Temperature
-20°C ~ 60°C

Mounting Type
Wall/Pole

Certification Compliant
FCC non-DFS
CE DFS

Dimension
190 x 124 x 47mm (w/o antenna)

IP Rating
IP67
