WAP7522

Enterprise Access Points (APs) are high-performance, robust, and scalable devices designed to deliver reliable wireless connectivity in large-scale environments, such as offices, corporate campuses, warehouses, factories, and other enterprise-level settings. Unlike consumer-grade routers, enterprise APs are built to handle the high demands of hundreds or even thousands of connected devices, offering advanced features like network security, and support for high-density environments.

  • Port configuration: 1×2.5 Gigabit Ethernet w/802.3at PoE PD
  • Power input: 12VDCPoE IN
  • Operating temperature: 0 to 40°C
  • Support RESTful API for Easy integration
Description

WAP7522

MCU
Qualcomm A53 Quad-core @1.1GHz

RF Radio/Tx Power (Conductive Per Chain MCS0)
2×2 2.4GHz, @19dBm
2×2 5GHz, @19dBm

Flash
256MB NAND (option, additional NOR)

Memory
1GB DDR4

Ethernet Switch/PHY
1x 2.5GbE PHY

Power Source
PoE/DC IN

DC IN
12v

PoE PD/PSE
PD, 802.3at

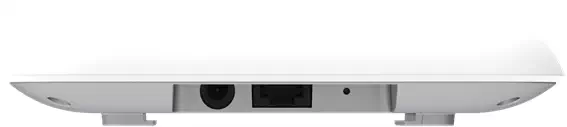

I/O
1x 2.5GbE RJ45
1x Reset Button
1x DC IN

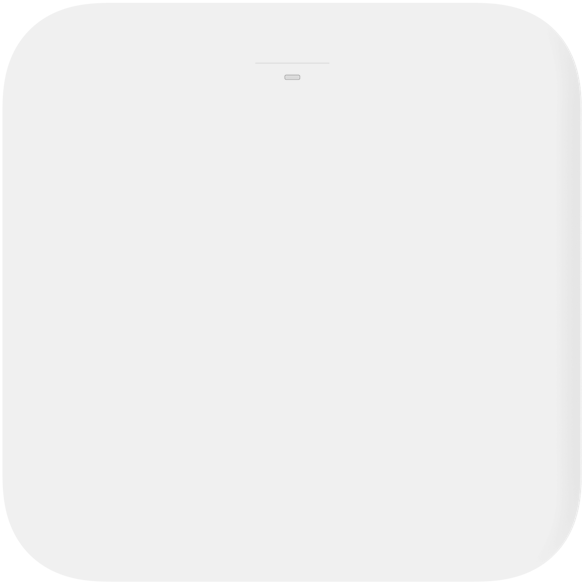

LED Indicator
1x Tri-color LED

Antenna Design
Internal PIFA Antenna

Operation Temperature
0°C ~ 40°C

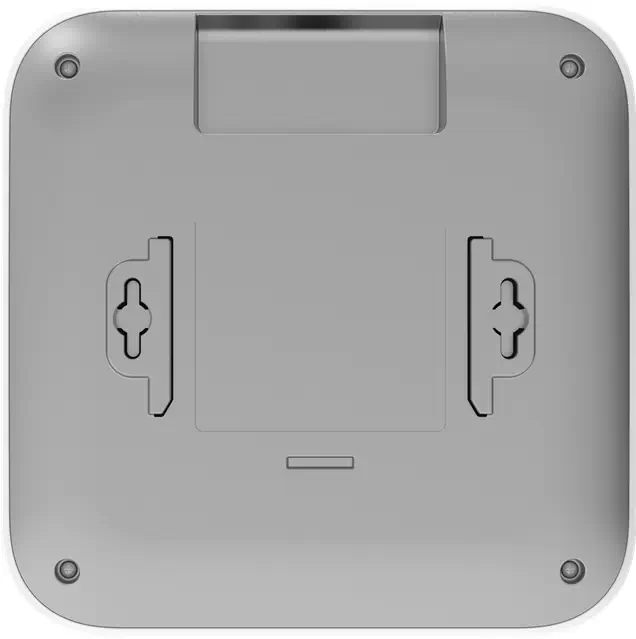

Mounting Type
Wall/Ceiling

Certification Compliant
FCC non-DFS
CE non-DFS

Dimension
158 x 158 x 35.8mm
