WAP7633-C
Enterprise Access Points (APs) are high-performance, robust, and scalable devices designed to deliver reliable wireless connectivity in large-scale environments, such as offices, corporate campuses, warehouses, factories, and other enterprise-level settings. Unlike consumer-grade routers, enterprise APs are built to handle the high demands of hundreds or even thousands of connected devices, offering advanced features like network security, and support for high-density environments.
- Port configuration: 1×10 Gigabit Ethernet w/802.3bt PoE PD + 1×10 Gigabit Ethernet
- Power input: 12VDC/PoE IN
- Operating temperature: 0 to 40°C
- Support RESTful API for Easy integration
WAP7633-C
MCU
Qualcomm A73 Quad-core @ 2.2GHz
RF Radio/Tx Power (Conductive Per Chain MCS0)
4×4 2.4GHz, @19dBm
4×4 5GHz, @19dBm
4×4 6GHz, @19dBm
BT/BLE
BLE v5.3
Flash
256MB NAND
Memory
2GB DDR4
Ethernet Switch/PHY
2x 10GbE PHY
Power Source
PoE/DC IN
DC IN
12v 3A
PoE PD/PSE
PD, 802.3bt

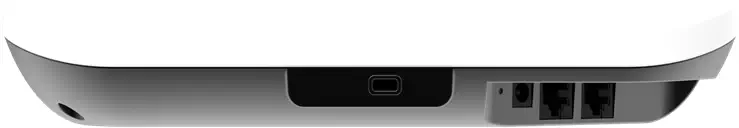

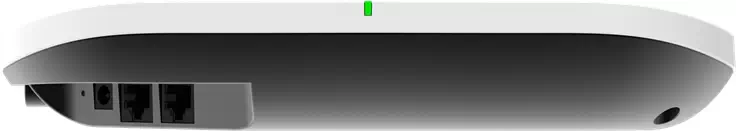

I/O
2x 10GbE RJ45
1x Reset Button
1x DC IN

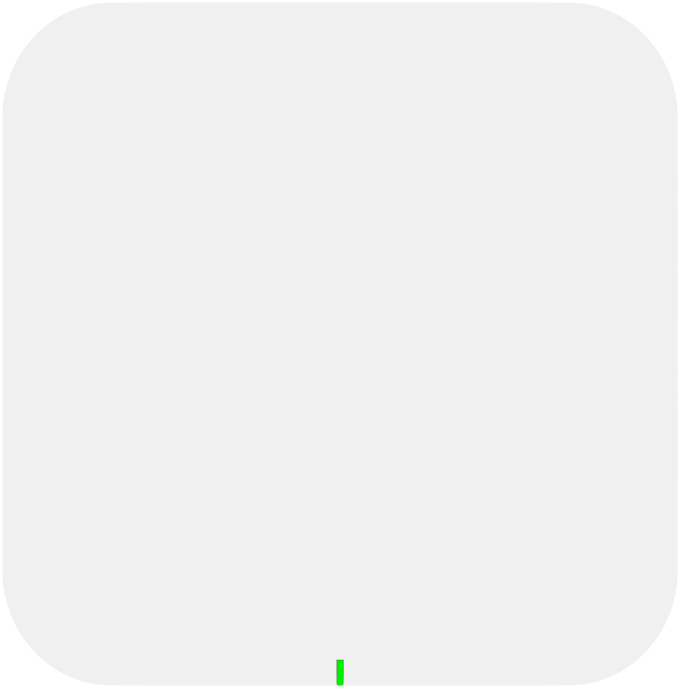

LED Indicator
1x Tri-Color LED
1x White LED
Antenna Design
Internal PIFA Antenna with
Antenna Plate
Operation Temperature
0°C ~ 40°C

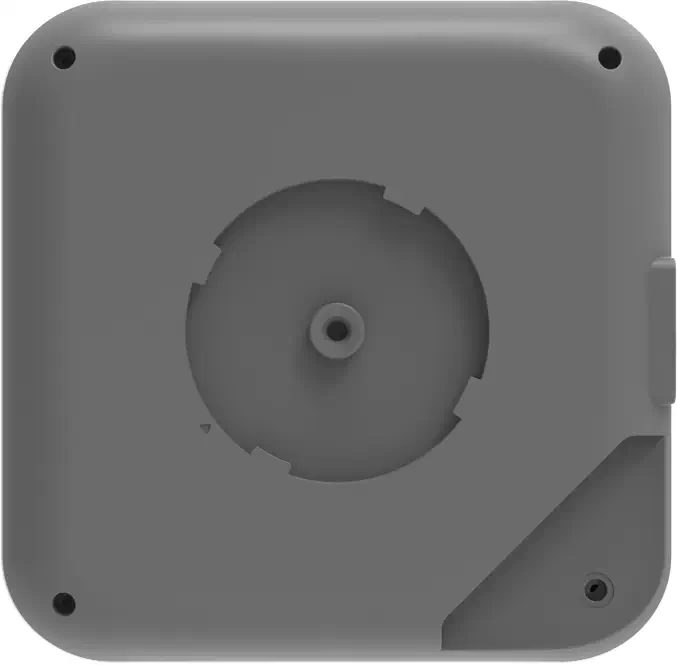

Mounting Type
Wall/Ceiling
Certification Compliant
FCC non-DFS
CE non-DFS
Dimension
230 x 230 x 39.5mm
