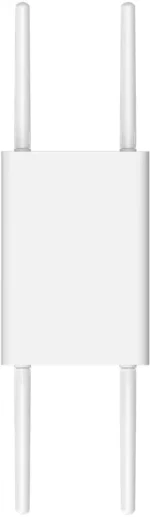

WAP9522EXT

The Wi-Fi 7 Outdoor Access Point delivers ultra-fast, low-latency wireless connectivity with exceptional coverage for large outdoor environments. Engineered with a rugged, weatherproof enclosure, it is built to withstand harsh conditions including rain, dust, extreme temperatures, and prolonged sun exposure. Its durable industrial-grade design ensures reliable long-term operation, while next-generation Wi-Fi 7 technology provides higher capacity, wider channels, and improved efficiency for dense client deployments. With high-gain antennas and optimized RF performance, this outdoor AP extends wireless coverage over expansive areas, making it ideal for campuses, industrial sites, parks, and other wide open spaces.

  • 4 x Deatachable high gain external antennas
  • Port configuration: 2×2.5 Gigabit Ethernet w/802.3at PoE PD
  • Power input: PoE IN/DC In
  • Operating temperature: -20 to 60°C

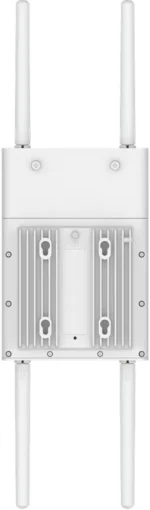

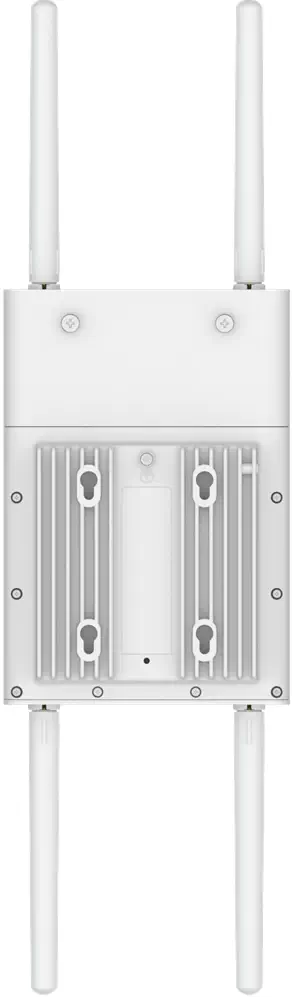

  • Wall/Pole Mountable
  • IP67 Supported
  • Support RESTful API for Easy integration
Description

WAP9522EXT

MCU
Quad-core A53 @ 1.5GHz

RF Radio
2.4GHz : Wi-Fi 6 802.11ax, 2×2
5GHz : Wi-Fi 6 802.11ax, 2×2

Flash
512MB NAND
(option, additional NOR)

Memory
1GB DDR4

Ethernet Switch/PHY
2x 2.5GbE PHY

HW Watchdog
(option)

Power Source
PoE

DC IN
12v

PoE PD/PSE
PD, 802.3at

I/O
2x 2.5GbE RJ45
1x Reset Button

LED Indicator
5x single-color LED

Antenna Design
4x External Antenna

Operation Temperature
-20°C ~ 60°C

Mounting Type
Wall/Pole

Certification Compliant
FCC/CE compliant
DFS HW capable

Dimension
190 x 124 x 47mm (w/o antenna)
